STORAGE BIN

In order to complement your ice production needs. ITV has the right selection of ice storage bins for your modular and remote unit requirements.

Bins are ideal for storing ice where and when you need it; isolated, but not refrigerated, ITV´s ice storage bins will provide you always fresh ice,  because of the heavy  duty sealed door and a low drain, through which melted water exits.

With heavy duty stainless steel construction, non-corroding polyethylene lined walls, and gravity loading ice, ITV’s bins are stronger, more durable, and the right choice to meet your ice storage needs.

The body of the slope front bins models are made of 304 Stainless Steel construction and they include a custom cut, top-fixed adapter plate, for the specific size of any ITV machine, with four stainless steel adjustable legs, and one ice scoop.

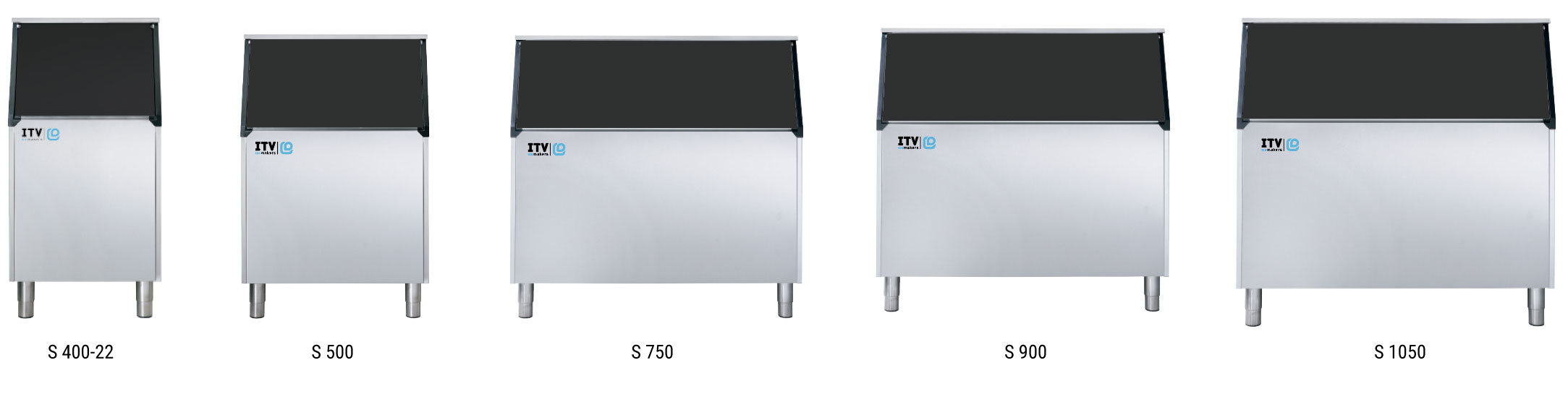

Slope front bins

 MODEL  STORAGE CAPACITY NET WEIGHT DIMENSIONS (W x P x H) SPEC. SHEET
AHRI (LBS.) APPLICATION (LBS.) LBS INCH
S-400-22 320 399  119 22″ x 34″ x 44″
 S-500 408 510 123 30″ x 32″ x 42″
S-750 594 742  152 42″ x 32″ x 42″
 S-900 686 858 165 48″ x 32″ x 42″
 S-1050 838.4 1048  207  52″ x 34″ x 44″

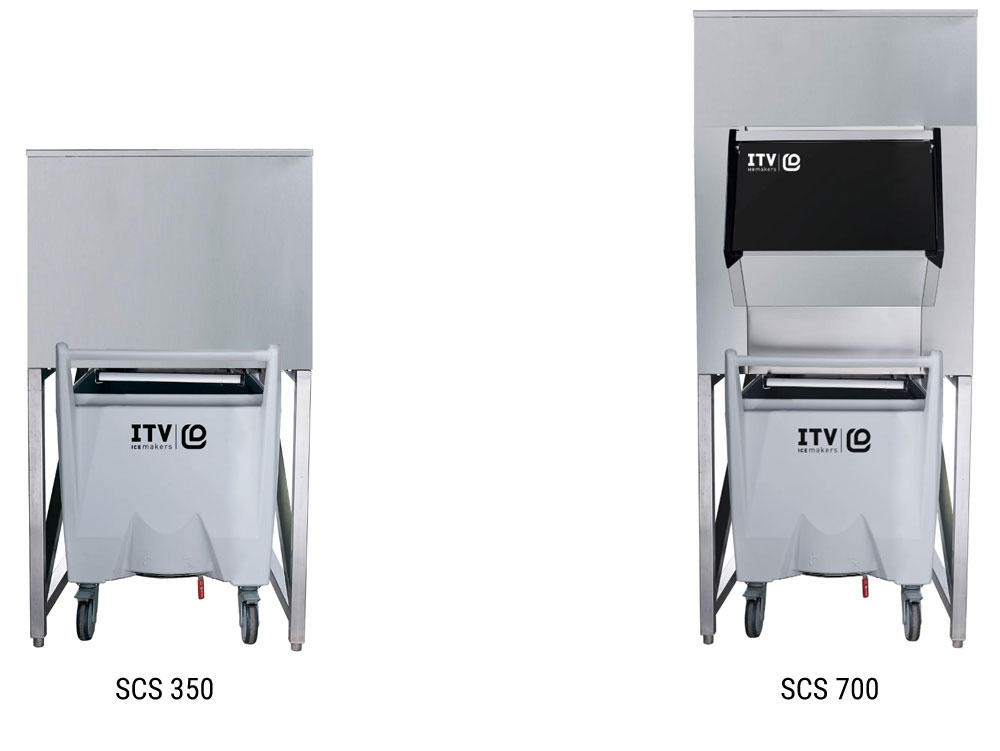

Ice transport systems – Single cart

 MODEL  STORAGE CAPACITY NET WEIGHT DIMENSIONS (W x P x H) SPEC. SHEET
AHRI (LBS.) APPLICATION (LBS.) LBS INCH
SCS-350 242.5 308.6  75 30″ x 40″ x 52″
 SCS-700 533 661.4  95  30″ x 40″ x 73″

Ice transport system – Double cart

 MODEL  STORAGE CAPACITY NET WEIGHT DIMENSIONS (W x P x H) SPEC. SHEET
AHRI (LBS.) APPLICATION (LBS.) LBS INCH
SCD-900 728 911  381 60″ x 40″ x 60″
SCD-1400 1089 1360 353 60″ x 40″ x 72″
 SCD-1800 1433 1790  386  60″ x 40″ x 82″
